Model: SF24JC3-N2523

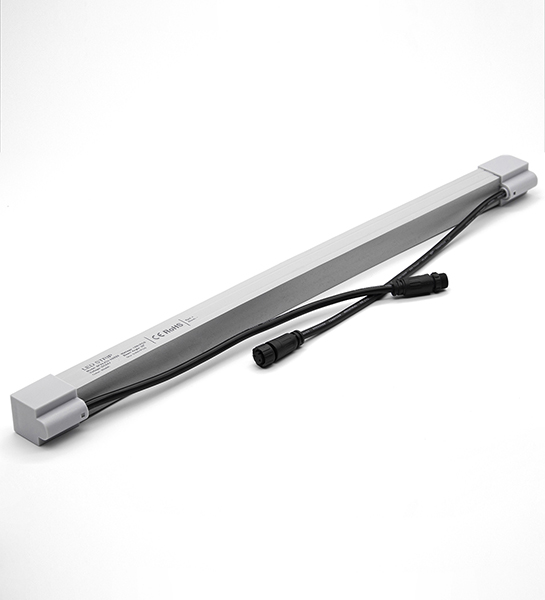

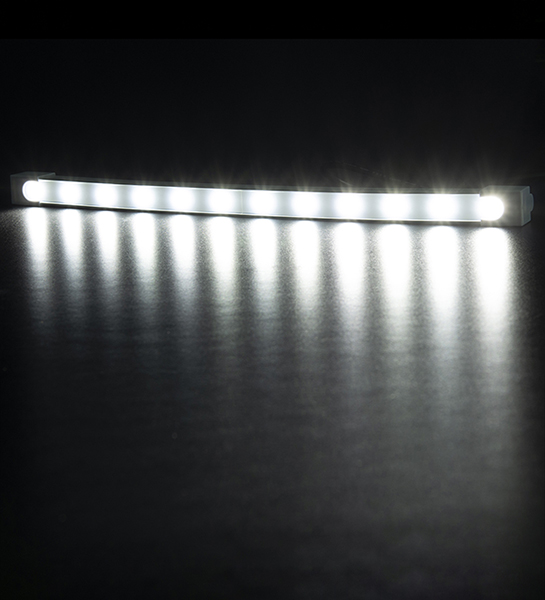

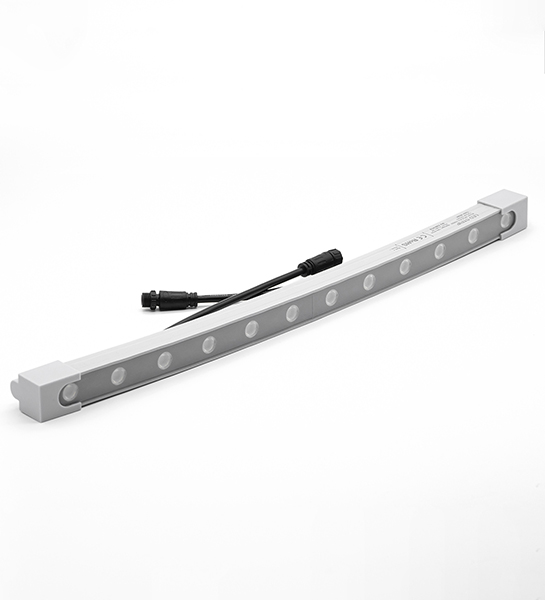

Flexible LED Wall Washer

CREE or OSRAM light source, Dow Corning silicone.

Unique heat dissipation aluminum components plus independent mainline, cascading up to 10m.

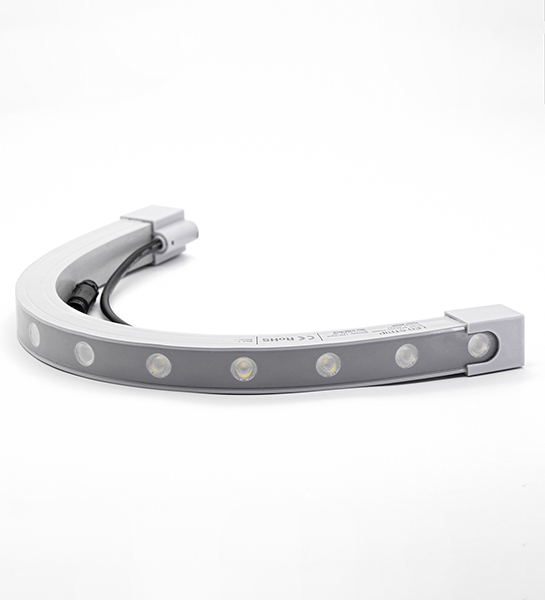

Bidirectional bending design with multiple installation options and wide applicability.

Integrated extrusion molding, customizable within 10m.

Multiple light-emitting angle options: 20x55°/10x65°/35°.

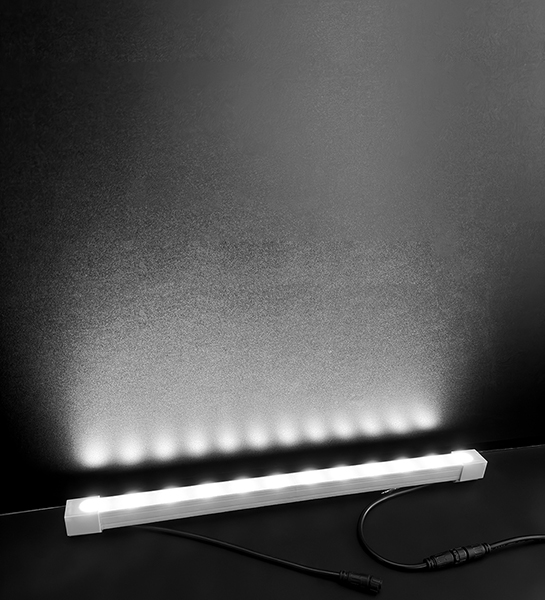

It is used for wall-washing lighting on building surfaces, and decorative lighting for indoor and outdoor special-shaped wall-washing.

Flexible LED Wall Washer

Product Parameters

Model Number

Dimensions(mm)

LED Type

LED Qty/M

Beaming Angle

CRI

Input Vol.

Power(W/M)

Lumens(LM/M)

CCT/Colors

IP Grade

SF24JD3-N25231000*25*23

OSRAM

2420x55°/10x65°/35°≥80DC24V2414502700-6500K
IP65
SF24JD3-N25231000*25*23/
2420x55°/10x65°/35°≥80DC24V1814502700-6500KIP65
SF24JC3-N2523-Q1000*25*23
/2425×55°/25×40°/35°/DC24V24480RGBIP65
SF24JD3-N2523-Q021000*25*23/2420×55°/10×65°/35°/DC24V18350RGB-DMXIP65
SH24JD3-N2523-QW1000*25*23/2437×42°/32×39°/35°≥80DC24V24/RGBW-DMXIP65
